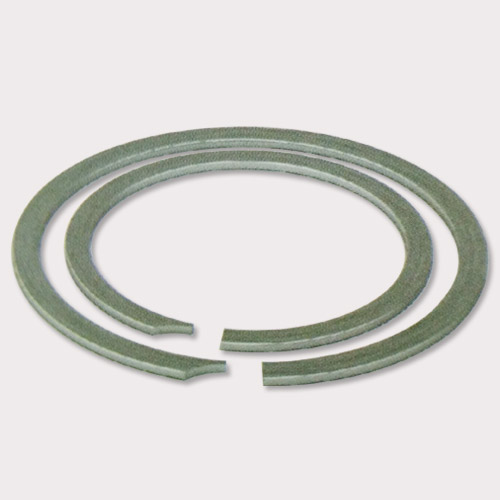

轴用挡圈 A型—轴用弹性挡圈（摘自GB 894.1-86）
| 轴径d0 | 挡 圈 | 沟 槽（推荐） | 孔d≤ | |||||||||
| d | S | d1 | h | d2 | m | n ≥ | ||||||
| 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | |||||
| 3 | 2.7 | -0.11 | 0.4 | -0.03 | 1 | 0.95 | 2.8 | 0 -0.04 | 0.5 | +0.14 0 | 0.3 | 7.2 |
| 4 | 3.7 | -0.11 | 0.4 | -0.03 | 1 | 1.1 | 3.8 | 0 -0.048 | 0.5 | +0.14 0 | 0.3 | 8.8 |
| 5 | 4.7 | -0.11 | 0.6 | -0.03 | 1 | 1.25 | 4.8 | 0 -0.048 | 0.7 | +0.14 0 | 0.3 | 10.7 |
| 6 | 5.6 | -0.11 | 0.6 | -0.03 | 1.2 | 1.35 | 5.7 | 0 -0.048 | 0.7 | +0.14 0 | 0.5 | 12.2 |
| 7 | 6.5 | -0.12 | 0.6 | -0.03 | 1.2 | 1.55 | 6.7 | 0 -0.058 | 0.7 | +0.14 0 | 0.5 | 13.8 |
| 8 | 7.4 | -0.12 | 0.8 | -0.06 | 1.2 | 1.6 | 7.6 | 0 -0.058 | 0.9 | +0.14 0 | 0.6 | 15.2 |
| 9 | 8.4 | -0.12 | 0.8 | -0.06 | 1.2 | 1.65 | 8.6 | 0 -0.058 | 0.9 | +0.14 0 | 0.6 | 16.4 |
| 轴径d0 | 挡 圈 | d1 | 沟 槽（推荐） | 孔d3≤ | |||||||
| d | S | d | S | n≥ | |||||||
| 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | ||||
| 10 | 9.3 | -0.26 | 1 | -0.08 | 1.5 | 9.6 | 0 -0.11 | 1.1 | +0.14 0 | 0.6 | 17.6 |
| 11 | 10.2 | -0.26 | 1 | -0.08 | 1.5 | 10.5 | 0 -0.11 | 1.1 | +0.14 0 | 0.8 | 18.6 |
| 12 | 11 | -0.26 | 1 | -0.08 | 1.5 | 11.5 | 0 -0.11 | 1.1 | +0.14 0 | 0.8 | 19.6 |
| 13 | 11.9 | -0.26 | 1 | -0.08 | 1.7 | 12.4 | 0 -0.11 | 1.1 | +0.14 0 | 0.9 | 20.8 |
| 14 | 12.9 | -0.26 | 1 | -0.08 | 1.7 | 13.4 | 0 -0.11 | 1.1 | +0.14 0 | 0.9 | 22 |
| 15 | 13.8 | -0.26 | 1 | -0.08 | 1.7 | 14.3 | 0 -0.11 | 1.1 | +0.14 0 | 1.1 | 23.2 |
| 16 | 14.7 | -0.26 | 1 | -0.08 | 1.7 | 15.2 | 0 -0.11 | 1.1 | +0.14 0 | 1.2 | 24.4 |
| 17 | 15.7 | -0.26 | 1 | -0.08 | 1.7 | 16.2 | 0 -0.11 | 1.1 | +0.14 0 | 1.2 | 25.6 |
| 18 | 16.5 | -0.26 | 1 | -0.08 | 1.7 | 17 | 0 -0.11 | 1.1 | +0.14 0 | 1.5 | 27 |
| 19 | 17.5 | -0.26 | 1 | -0.08 | 2 | 18 | 0 -0.11 | 1.1 | +0.14 0 | 1.5 | 28 |
| 20 | 18.5 | -0.29 | 1 | -0.08 | 2 | 19 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 29 |
| 21 | 19.5 | -0.29 | 1 | -0.08 | 2 | 20 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 31 |
| 22 | 20.5 | -0.29 | 1 | -0.08 | 2 | 21 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 32 |
| 24 | 22.2 | -0.21 | 1.2 | -0.08 | 2 | 22.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 34 |
| 25 | 23.2 | -0.21 | 1.2 | -0.08 | 2 | 23.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 35 |
| 26 | 24.2 | -0.21 | 1.2 | -0.08 | 2 | 24.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 36 |
| 28 | 25.9 | -0.21 | 1.2 | -0.08 | 2 | 26.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 38.4 |
| 29 | 26.9 | -0.21 | 1.2 | -0.08 | 2 | 27.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 39.8 |
| 30 | 27.9 | -0.21 | 1.2 | -0.08 | 2 | 28.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 42 |
| 32 | 29.6 | -0.21 | 1.2 | -0.08 | 2.5 | 30.3 | 0 -0.25 | 1.3 | +0.14 0 | 2.6 | 44 |
| 34 | 31.5 | -0.25 | 1.5 | -0.09 | 2.5 | 32.3 | 0 -0.25 | 1.7 | +0.14 0 | 2.6 | 46 |
| 35 | 32.2 | -0.25 | 1.5 | -0.09 | 2.5 | 33 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 48 |
| 36 | 33.2 | -0.25 | 1.5 | -0.09 | 2.5 | 34 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 49 |
| 37 | 34.2 | -0.25 | 1.5 | -0.09 | 2.5 | 35 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 50 |
| 38 | 35.2 | -0.25 | 1.5 | -0.09 | 2.5 | 36 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 51 |
| 40 | 36.5 | -0.51 | 1.5 | -0.09 | 2.5 | 37.5 | 0 -0.25 | 1.7 | +0.14 0 | 3.8 | 53 |
| 42 | 38.5 | -0.51 | 1.5 | -0.09 | 3 | 39.5 | 0 -0.25 | 1.7 | +0.14 0 | 3.8 | 56 |
| 45 | 41.5 | -0.51 | 1.5 | -0.09 | 3 | 42.5 | 0 -0.25 | 1.7 | +0.14 0 | 3.8 | 59.4 |
| 48 | 44.5 | -0.51 | 1.5 | -0.09 | 3 | 45.5 | 0 -0.25 | 1.7 | +0.14 0 | 3.8 | 62.8 |
| 50 | 45.8 | -0.51 | 2 | -0.12 | 3 | 47 | 0 -0.25 | 2.2 | +0.14 0 | 4.5 | 64.8 |
| 52 | 47.8 | -0.51 | 2 | -0.12 | 3 | 49 | 0 -0.25 | 2.2 | +0.14 0 | 4.5 | 67 |
| 55 | 50.8 | -0.64 | 2 | -0.12 | 3 | 52 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 70.4 |
| 56 | 51.8 | -0.64 | 2 | -0.12 | 3 | 53 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 71.7 |
| 58 | 53.8 | -0.64 | 2 | -0.12 | 3 | 55 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 73.6 |
| 60 | 55.8 | -0.64 | 2 | -0.12 | 3 | 57 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 75.8 |
| 62 | 57.8 | -0.64 | 2 | -0.12 | 3 | 59 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 79 |
| 63 | 58.8 | -0.64 | 2 | -0.12 | 3 | 60 | 0 -0.30 | 2.2 | +0.14 0 | 4.5 | 79.6 |
| 65 | 60.8 | -0.64 | 2.5 | -0.15 | 3 | 62 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 81.6 |
| 68 | 63.5 | -0.64 | 2.5 | -0.15 | 3 | 65 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 85 |
| 70 | 65.5 | 0.36 | 2.5 | -0.15 | 3 | 67 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 87.2 |
| 72 | 67.5 | 0.36 | 2.5 | -0.15 | 3 | 69 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 89.4 |
| 75 | 70.5 | 0.36 | 2.5 | -0.15 | 3 | 72 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 92.8 |
| 78 | 73.5 | 0.36 | 2.5 | -0.15 | 3 | 75 | 0 -0.30 | 2.7 | +0.14 0 | 4.5 | 96.2 |
| 80 | 74.5 | 0.36 | 2.5 | -0.15 | 3 | 76.5 | 0 -0.30 | 2.7 | +0.14 0 | 5.3 | 98.2 |
| 82 | 76.5 | 0.36 | 2.5 | -0.15 | 3 | 78.5 | 0 -0.30 | 2.7 | +0.14 0 | 5.3 | 101 |
| 85 | 79.5 | 0.36 | 2.5 | -0.15 | 3 | 81.5 | 0 -0.35 | 2.7 | +0.14 0 | 5.3 | 104 |
| 88 | 82.5 | -0.76 | 2.5 | -0.15 | 3 | 84.5 | 0 -0.35 | 2.7 | +0.14 0 | 5.3 | 107.3 |
| 90 | 84.5 | -0.76 | 2.5 | -0.15 | 3 | 86.5 | 0 -0.35 | 2.7 | +0.14 0 | 5.3 | 110 |
| 95 | 89.5 | -0.76 | 2.5 | -0.15 | 3 | 91.5 | 0 -0.35 | 2.7 | +0.14 0 | 5.3 | 115 |
| 100 | 94.5 | -0.76 | 2.5 | -0.15 | 3 | 96.5 | 0 -0.35 | 2.7 | +0.14 0 | 5.3 | 121 |
| 105 | 98 | -0.76 | 3 | -0.15 | 3 | 101 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 132 |
| 110 | 103 | -0.76 | 3 | -0.15 | 4 | 106 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 136 |
| 115 | 108 | -0.76 | 3 | -0.15 | 4 | 111 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 142 |
| 120 | 113 | -0.76 | 3 | -0.15 | 4 | 116 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 145 |
| 125 | 118 | -0.76 | 3 | -0.15 | 4 | 121 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 151 |
| 130 | 123 | -0.87 | 3 | -0.15 | 4 | 126 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 158 |
| 135 | 128 | -0.87 | 3 | -0.15 | 4 | 131 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 162.8 |
| 140 | 133 | -0.87 | 3 | -0.15 | 4 | 136 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 168 |
| 145 | 138 | -0.87 | 3 | -0.15 | 4 | 141 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 174.4 |
| 150 | 142 | -0.87 | 3 | -0.15 | 4 | 145 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 180 |
| 155 | 146 | -0.87 | 3 | -0.15 | 4 | 150 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 186 |
| 160 | 151 | -0.87 | 3 | -0.15 | 4 | 155 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 190 |
| 165 | 155.5 | -0.87 | 3 | -0.15 | 4 | 160 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 195 |
| 170 | 160.5 | -0.87 | 3 | -0.15 | 4 | 165 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 200 |
| 175 | 165.5 | -0.87 | 3 | -0.15 | 4 | 170 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 206 |
| 180 | 170.5 | -0.87 | 3 | -0.15 | 4 | 175 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 212 |
| 185 | 175.5 | -0.87 | 3 | -0.15 | 4 | 180 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 218 |
| 190 | 180.5 | -0.98 | 3 | -0.15 | 4 | 185 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 223 |
| 195 | 185.5 | -0.98 | 3 | -0.15 | 4 | 190 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 229 |
| 200 | 190.5 | -0.98 | 3 | -0.15 | 4 | 195 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 235 |
